500W LED BSWF Moving Head

HTK BSWF500LED

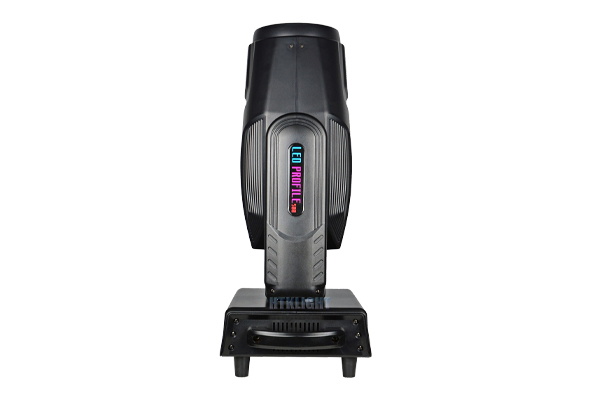

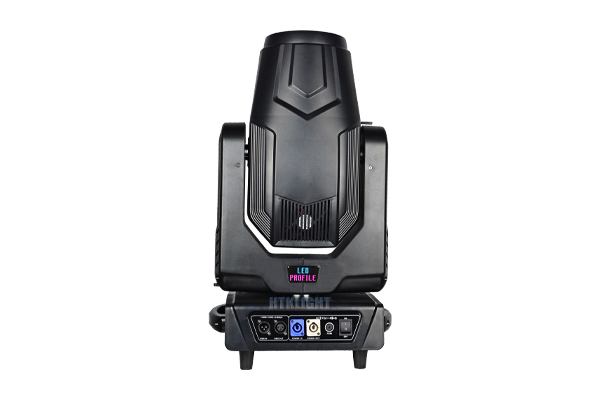

HTK BSWF500LED is designed as a beam spot wash moving head light with high power 400W LED lamp, a color wheel with 7 colors, gobo wheel with 7 replaceable gobos
shared：

Input voltage: AC90V-AC240V, 50/60Hz

Power comsumption:500W

Lamp: 400W high brightness white LED

Lifespan of lamp: min 20,000h

CTO: linear CTO wheel

Color wheel: 7 colors + white

Rotating Gobo Wheel: 7 gobos+open with shake effect and bi-direction rotation

Zoom range: 4.5° -40°

Focus: linear electric focus

Dimmer: 0~100% linear adjustment

Strobe: double lens strobe (1~30 times/second)

Pan:540°, Tilt: 270°, 16 bit resolution,bi-directional rotation

Automatical Pan and Tilt error correction and reset

Control mode: DMX512, Auto-run ,Master/ slave,RDM

DMX channel: 26CH

Display: LCD display,180° reverse view mode

Housing: flame-retardant ABS plastic housing

Working temperature: -25-40℃

IP rating: IP20

Size: 380*270*650mm

Weight: 23kg
