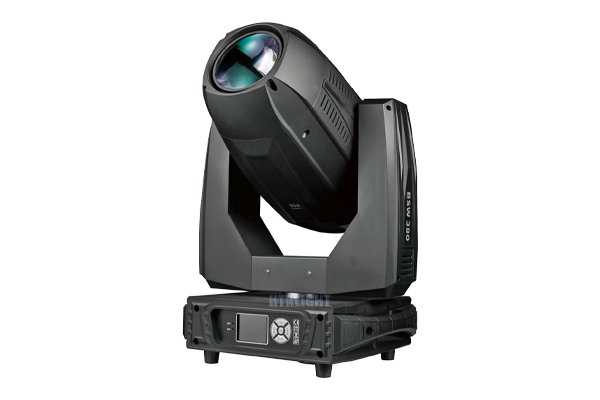

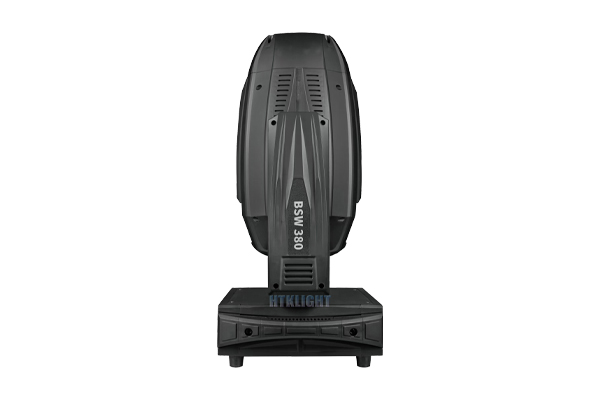

380W Beam Spot Wash Moving Head

HTK BSW380C

HTK BSW380C is designed as a beam spot wash moving head light with high power 371W Osram lamp, a color wheel with 13 colors, gobo wheel with 9 replaceable gobos and 14 static gobos.
shared：

Input Voltage:AC90~240V 50~60Hz

Power supply：600W

Fuse:8A

Lamp：371W Osram lamp

Ballast: 380V electronic ballast

Lifespan of lamp:min 2000 hours

Color tempteature: 7800K

Motor: 16 silent motors, XY 3-phase motor

Control Mode: DMX, Auto-run, Master/slave,Sound-active

DMX Channel: 19CH/23CH

Beam angle: 3°-50°

Optical System: high efficient combinational optical lens, high brightness, high resolution

Color: 11 colors+white,bi-directional rotation,adjustable speed of rainbow effect

Gobo:7 replaceable rotational gobos, 14 static gobos+white, adjustable speed,running water effect  Strobe:two-pieces plate strobe 0.5-9 times/sec,ramdon strobe, synchronous strobe     Dimmer:0-100% linear dimming

Prism: 5-facet prism + 8-facetprism

Focus:electrical focusing

Pan:540°, Tilt: 270°,8/16 bit resolution,bi-direction rotation

Automatical Pan and Tilt error correction and reset

Display: Touch screen TFT LCD display, easy operation, 180° reverse available.

Connection: PowerCON in&out, 3-pin or 5-pin XLR DMX in&out

IP Rating: IP20

N.W.:21KG

G.W:24KG

Size：399*303*700mm
