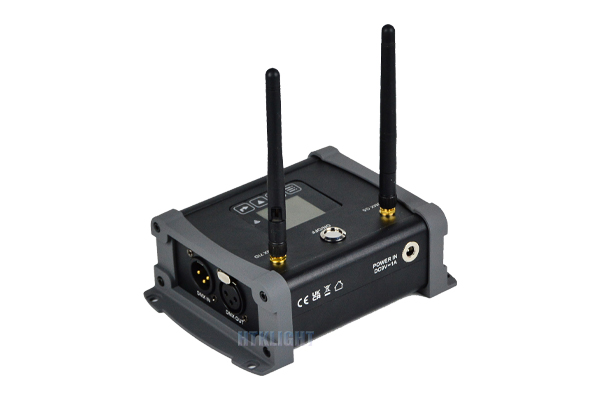

W-DMX transceiver

HTK-wireless transceiver-B

HTK-wireless transceiver-B is a quality wireless device using Sweden Wireless Solution.It is unique in its use of advanced radio technologies that are also used in mobile phones and military communication. Rather than using fixed frequency channels, it uses Adaptive Frequency Hopping technology to continually check the radio channels for interferences and to rapidly move operation to clear radio channels.
shared：

Input Voltage: DC 12.6V

External Power Supply: AC110V/240V,50/60Hz

Power and Current: 30W 2.5A

DMX Channels: (6CH, 17CH, General CH)

Touch Screen Full Text read out, Back-Lit LCD Display

Address up to 85 lights to work with the automated Auto/Fade Modes

(20) Auto/Fade Modes with speed control

(20) Sound Modes

(2)WDMX and 2.4Ghz Wireless DMX transmitter with 7 ID Groupsrespectively compatible with 2 protocol type (up to 250ft line of sight).

Both Wireless can be on working together simultaneously.

Up to 20+ battery run time hours per charge

Recharge Time: 5 hours

3/5 Pin DMX Input and 3/5 Pin DMX Output

(2) Exterior Antennas

Rubber Feet for non intrusive lay flat design

Size: 16x16x13cm

Weight: 1KG
